11kva Ecco Hybrid Inverter

Ecco 11 kVA / 11 kW Hybrid Solar Inverter – 48 V, 160 A MPPT, Pure Sine Wave
Dimensions: 540 × 415 × 122 mm
Weight: ±15 kg
Dual MPPT | 11 kW PV Input | 48 V Battery | Optional Wi-Fi Monitoring

Ecco also currently lists complete 11 kVA systems using this inverter with lithium batteries and solar panels, so the inverter can be quoted either as a standalone unit or as part of a complete solar package.

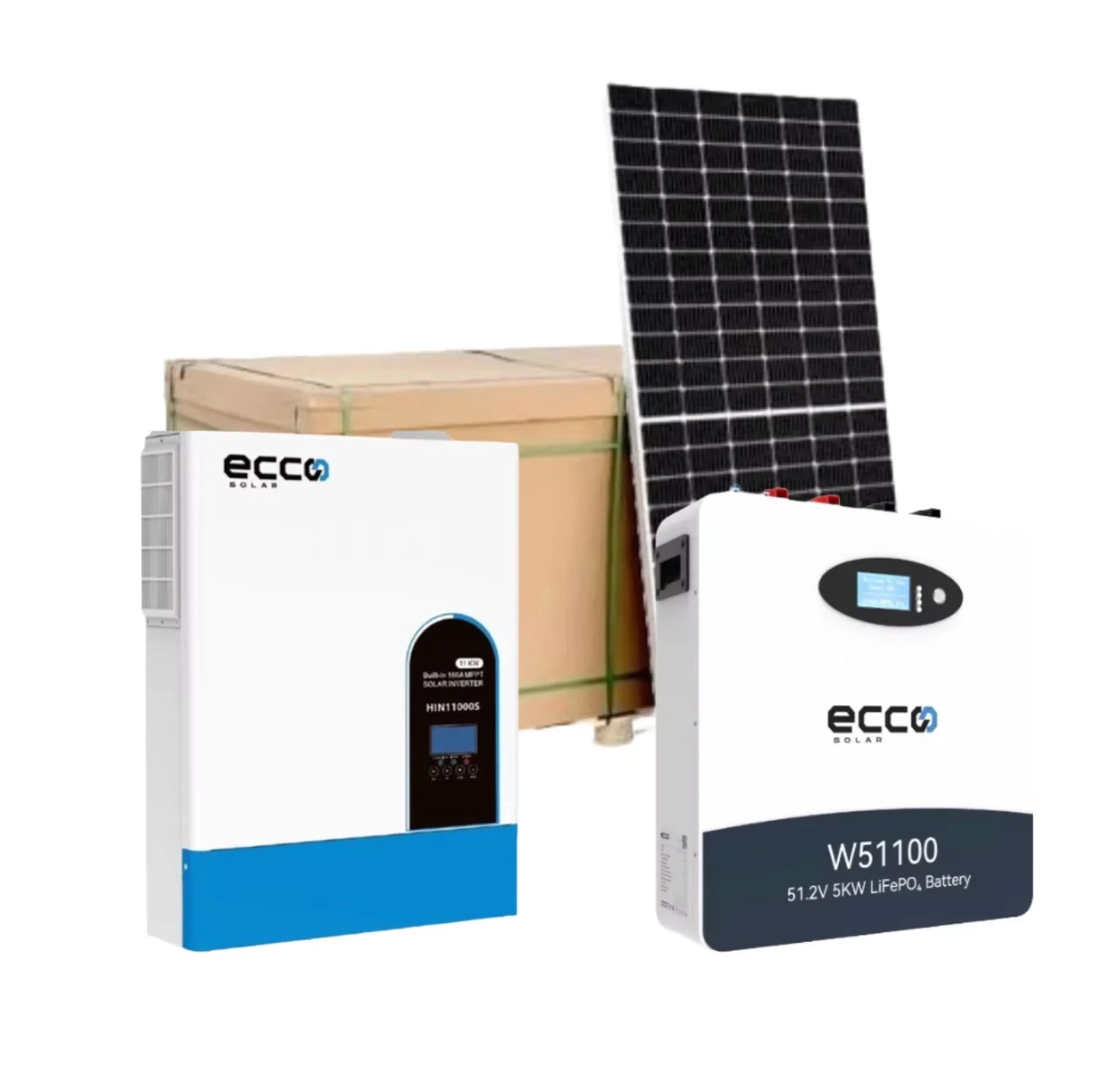

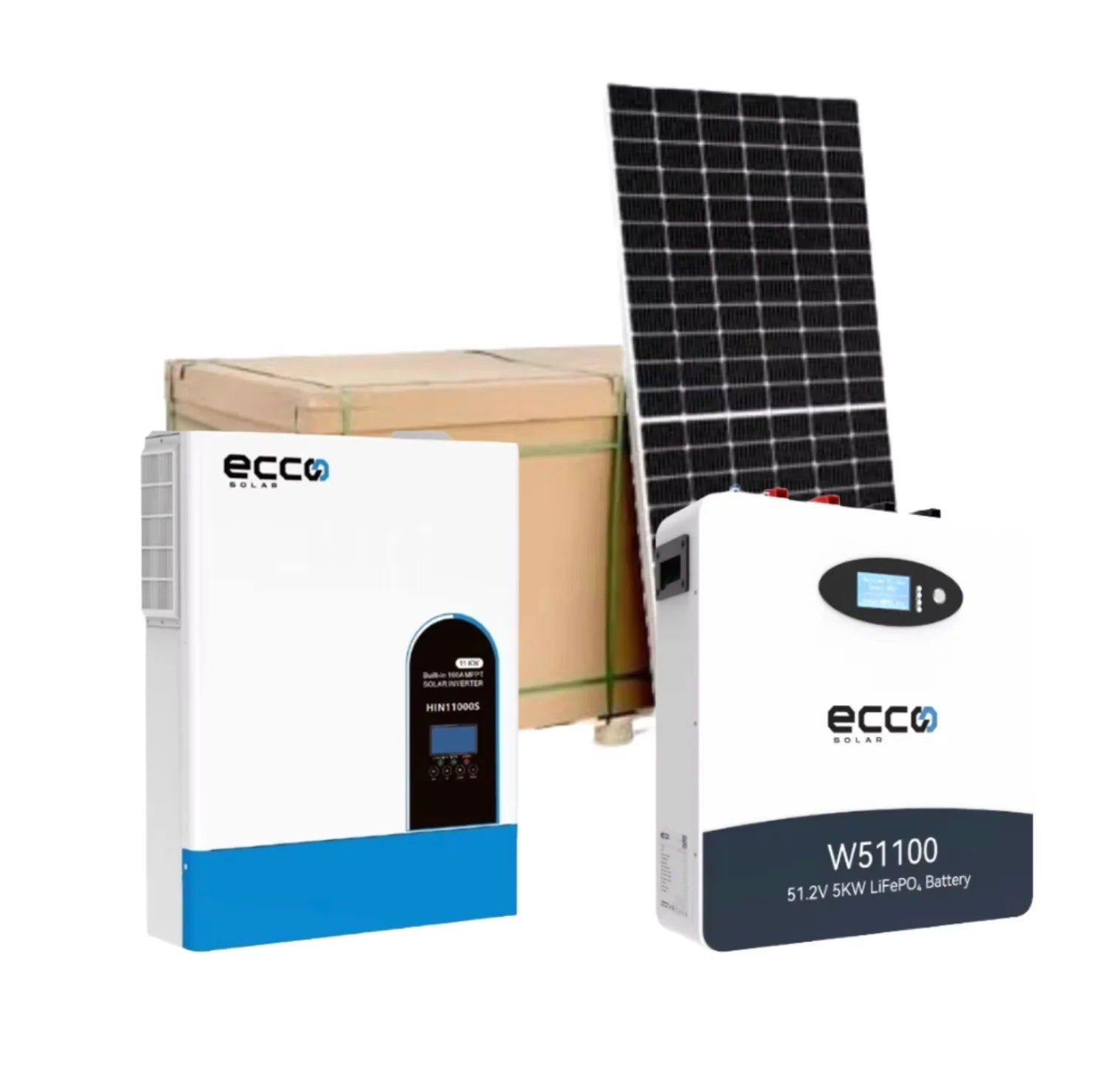

This Combo Consists of the Following:

• 1 x Ecco 11kVA Hybrid Inverter

• 1 x Ecco 5.12kWh Lithium Battery

• 8 x 580W Solar Panels

• 6 x 3.5m Mounting Rails

• 20m x 6mm Red Solar Cable

• 20m x 6mm Black Solar Cable

• 16 x Solar Panel Roof Hooks

• 14 x PV Mid Clamps

• 4 x PV End Clamps

• 1 x Combiner Box (1 In / 1 Out)

• 2 x Battery Cable Sets

• 1 x Latch Fuse Holder

• 2 x 125A Fuses

• 4 x Rail Extensions

• 1 x AC Combiner Box

Ecco 11kVA / 11000W Hybrid Inverter

The Ecco HIN11000S Hybrid Inverter is designed to support solar panels, battery storage, and utility power within a single platform. Featuring dual MPPT technology and pure sine wave output, it is suitable for a wide range of residential and commercial energy applications.

Key Features

• 11kVA / 11kW Output Capacity

• Dual MPPT Solar Charge Controllers

• Pure Sine Wave Output

• Power Factor 1.0

• Maximum PV Input Voltage: 500VDC

• Built-In 160A MPPT Charger

• Operates With or Without Battery Storage

• Lithium Battery Activation via PV or Utility

• LiFePO4 Battery Communication via RS485

• Optional WiFi Monitoring

• Multiple Output Priority Modes

• Detachable Dust Cover for Harsh Environments

• Battery Equalization Function

Inverter Specifications

General

• Model: HIN11000S

• Rated Capacity: 11kVA / 11kW

• Maximum PV Input Power: 11kW

• Parallel Capability: No
