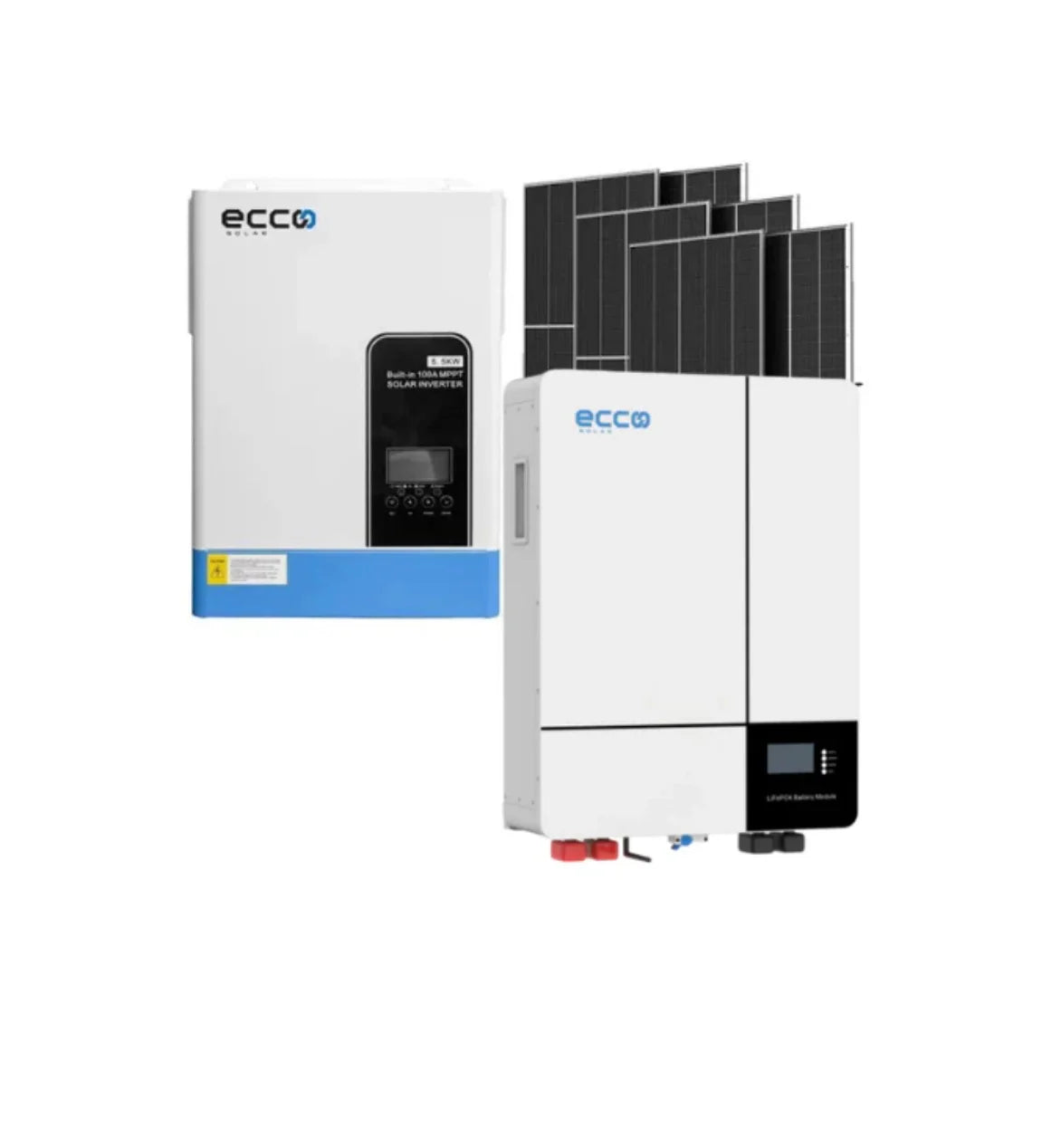

6.2KVA/6200W Ecco MPPT Combo 1 X 5.12 KWH AH Battery 6X 460W Mono Solar Panels Inverter Combo

6.2KVA/6200W Ecco MPPT Combo 1 X 5.12 KWH AH Battery 6X 460W Mono Solar Panels Inverter Combo

R 23,999.00 ZAR
R 23,999.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.
🏷️
Go big: Nationwide Delivery.
🚚
Delivery in 2–5 days
🏪
Same Day Delivery Available
🔄
14-Day returns with the option of a refund, or replacement, available online or at your nearest Ace Group store.

Complete off-grid solar power system combining a 6.2KVA/6200W Ecco MPPT inverter with integrated charge controller, one 5.12 kWh lithium battery bank, and six 460W monocrystalline solar panels. Designed for reliable energy independence with high-efficiency power conversion and maximum solar input optimization. Suitable for remote installations, backup power applications, and sustainable energy solutions where grid connection is unavailable or unreliable. System delivers consistent performance across varying sunlight conditions with advanced battery management and inverter protection features.

6.2KVA/6200W Ecco MPPT Combo 1 X 5.12 KWH AH Battery 6X 460W Mono Solar Panels Inverter Combo

Overcome load shedding with this premium hybrid inverter load-shedding Combo

The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.

Hybrid Inverter 48v 6.2 Kva 6200w MPPT 120A Inverter Pure Sine Wave - Ecco

Features
- Dual output for smart load management
- Lithium battery activation function by PV or Utility - Compatible work with LiFePO4 battery via RS485 - PV Input 500 Vdc Max
- Built-in MPPT 120A
- Capable to work without battery
- Detachable dust cover for harsh environment
- Wifi remote monitoring optional
- Support multiple output priority: UTL, SOL, SBU, SUB - EQ function to optimize battery performance and extend lifecycle



Battery Specifications:

Model : ME51100
Nominal Voltage : 51.2 V
Rated Capacity  : 100 Ah
Energy : 5.12 kWh
Discharge Ending Voltage : 43.2 V
Charging Limited Voltage : 58.4 V
Max. Charge/Discharge Current : 100 A
Weight Approx. 48 Kg
Dimensions (W*D*H) mm (inches) : 400 *560 *150 mm
Protocol : RS485/RS232/CAN
Max number of parallel connections : 15
Design life : More than 15 years
Cycle Life : More than 6000 cycles @ 80% DOD
IP Class : IP30
Case Material : SPCC
Operating Temperature Charging : 0 to +45℃ Discharging: -10 to +55℃ Storage: -20 to +60℃

Combo Includes:

1x Ecco 51.2v 100ah 5.12kWh Lithium Battery ME51100 Wall-Mounted ( 5 Years Warranty)
1x Hybrid Inverter Ecco 6.2KVA 6200W Watt MPPT(5 Years Warranty)
6x 460W Mono Solar Panel (12 years warranty)

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
