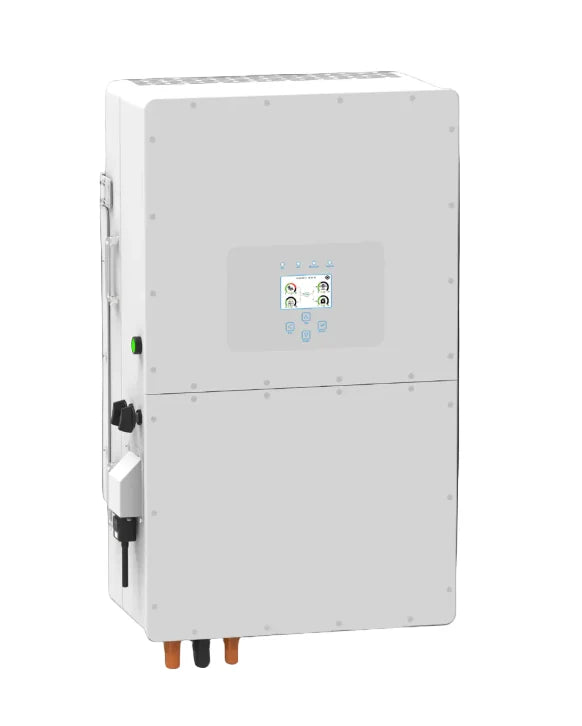

The DEYE 50kW HV 3 Phase Hybrid Inverter (model SUN-50K-SG01HP3-EU-BM4) is a high-performance, commercial-grade solution for large-scale solar power systems. It is designed to work with high-voltage (HV) lithium-ion batteries and includes a WiFi dongle for remote monitoring.

Key Features

• This inverter supports high-voltage lithium-ion batteries, with a voltage range of 160V to 800V, which offers greater efficiency and less heat dissipation with up to three Maximum Power Point Trackers (MPPTs), it can connect to multiple solar arrays, optimizing energy harvesting even from solar panel setups with different orientations or shading. For larger power needs, you can connect up to 10 units in parallel for both on-grid and off-grid operations.

Specifications

•  Weight:80kg
•  Dimensions:527×894×294 mm



  Deye 50 kW Hybrid Inverter – Dimensions

  • Model: SUN-50K-SG01HP3-EU-BM4
  • Rated Power: 50 kW
  • Phase: 3-Phase
  • Battery: High Voltage, 160–800 V
  • Max PV Input: 65 kW
  • MPPT: 4
  • Dimensions: 527 × 894 × 294 mm (W × H × D)
  • Weight: ±80 kg
  • Protection: IP65
  • Cooling: Intelligent air cooling
  • Communication: RS485 / RS232 / CAN; Wi-Fi monitoring supported
