Ecco 3.5 KVA MPPT 100A Ecco 2.56 KwH Lithium 3X 460W Mono Solar Panels Combo KitEcco 3.5 KVA MPPT 100A Ecco 2.56 KwH Lithium 3X 460W Mono Solar Panels Combo Kit

Ecco 3.5 KVA MPPT 100A Hybrid Solar Combo Kit with 2.56 kWh Lithium Battery & 3 × 460W Mono Solar Panels
Inverter Dimensions: 359 × 295 × 100 mm
Battery Dimensions: 329 × 173 × 216 mm each
Solar Capacity: 1.38 kW
Battery Storage: 2.56 kWh
Inverter Output: 3.5 kVA / 3,500 W
MPPT: 100 A

Ecco 3.5 KVA MPPT 100A Ecco 2.56 KwH Lithium  3X 460W Mono Solar Panels Combo Kit

Technical Specifications:

• 12V 100Ah LiFePo4 Single Battery Module
• Rated Capacity 1.28kwh
• Nominal Voltage 12.8V
• Charge cut-off voltage 14.6v
• Discharge cut-off voltage 10v
• Max Discharge current 100A
• Design Life: -/+ 3-5 Years
• Charging working temperature 0-45C
• Dimensions (LxWxH): 329  x  173 x 216 mm
• Weight: Approx. 10.5kg
• Can Be Connected in Series & Parallel
• 4 series 4 parallel
• 3000 cycles @ 80% Depth Of Discharge (DOD)

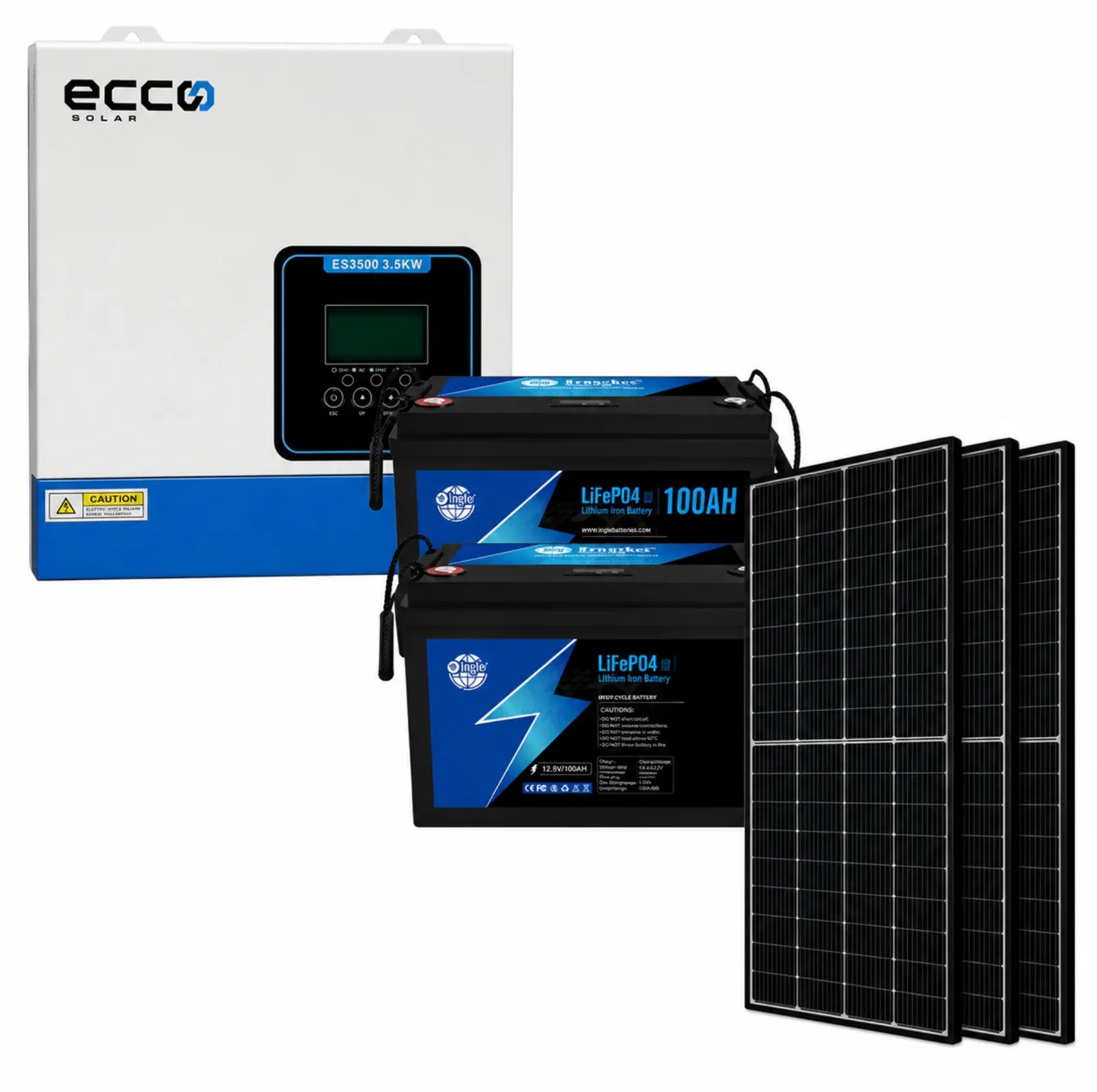

Combo includes:

• 2x 12.8v 100ah 1.28Kwh Ingle Lithium Battery (2 Years Warranty)

• 1x Hybrid Inverter 24V 3.5 KVA 3500W MPPT 100A Inverter Pure Sine Wave - Ecco (5-Year Repair Warranty)

• 3x Trina 460w Mono Black Frame Tier 1 Solar Panel (25 Year Product Warranty)

• PLEASE NOTE COURIER FOR SOLAR PANELS ARE AT YOUR OWN RISK
• Warranties:
  All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
