Ecco 3.5kVA Hybrid Inverter with SVOLT 25.6V 106Ah Lithium Battery — a complete solar and backup power solution in one package. The Ecco inverter delivers 3500VA / 3500W pure sine wave output with integrated 100A MPPT solar controller, battery charger, and inverter functions. Supports PV arrays up to 4000W with voltage range 120VDC–500VDC, making it ideal for residential and commercial solar installations. Features multiple output priority modes, RS485 communication, battery equalization, and parallel operation capability for scalable systems. Paired with the SVOLT 25.6V 106Ah lithium battery for reliable energy storage and seamless backup power. Operates at 230VAC output, 50/60Hz, with IP21 ingress protection for indoor installation. Perfect for off-grid, hybrid, and grid-tied solar systems requiring dependable power management and fast response times.

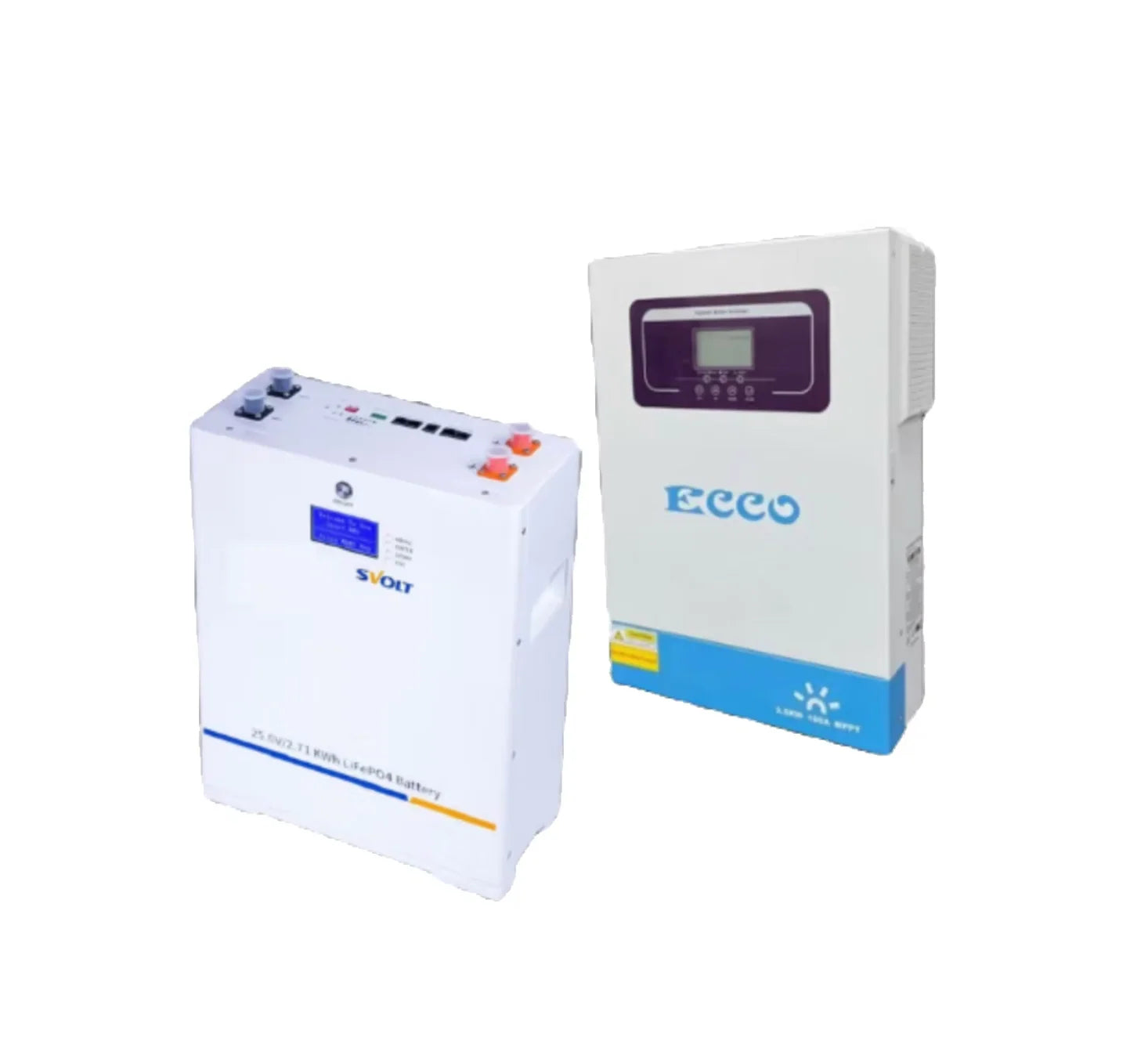

Ecco 3.5 kVA Lithium Combo – 3,500 W Hybrid Inverter + 2.56 kWh LiFePO₄ Battery
Inverter Dimensions: 359 × 295 × 100 mm
Battery Dimensions: 442 × 400 × 132 mm
Battery Storage: 2.56 kWh
MPPT: 100 A

This Combo Consists of the Following:

• 1 x Ecco 3.5kVA Hybrid Inverter

• 1 x SVOLT 25.6V 106Ah Lithium Battery

Ecco 3.5kVA Hybrid Inverter

The Ecco 3.5kVA Hybrid Inverter combines inverter, battery charging, and solar charge controller functions into a single unit. Designed for solar and backup power systems, it supports multiple operating modes and battery management functions.

Key Features

• 3500VA / 3500W Output Capacity

• Pure Sine Wave Output

• Output Power Factor 1.0

• Built-In 100A MPPT Solar Controller

• High PV Input Voltage Range

• Multiple Output Priority Modes

• RS485 Communication Support

• Battery Equalization Function

• Compatible with Lithium Battery Systems

• Supports Parallel Operation (Parallel Version)

• Wireless Parallel Capability

• Suitable for Solar and Backup Applications

Inverter Specifications

General

• Rated Power: 3500VA / 3500W

• Battery Voltage: 24VDC

• Output Voltage: 230VAC

• Output Frequency: 50/60Hz

• Ingress Protection: IP21

• Indoor Installation

Solar Charger

• Maximum PV Array Power: 4000W

• MPPT Voltage Range: 120VDC – 500VDC

• Maximum PV Open Circuit Voltage: 500VDC

• Maximum MPPT Charge Current: 100A

AC Charger

• AC Input Voltage: 230VAC

• Input Frequency: 50/60Hz
